Gas Furnace Installation: Step By Step Guide

6 Minute Read

Posted 8.27.25

Installing a new gas furnace is one of the most important decisions you’ll make for your home’s comfort and energy efficiency. A properly installed gas furnace can provide reliable heating for 15-20 years, while an improper installation can lead to safety hazards, higher energy bills, and frequent repairs. This comprehensive guide walks you through everything you need to know about gas furnace installation, from preparation to completion.

Whether you’re replacing an old furnace or installing one for the first time, this guide covers the essential steps, safety considerations, and key factors that ensure a successful installation. While gas furnace installation requires professional expertise due to safety regulations and technical complexity, understanding the process helps you make informed decisions and work effectively with your HVAC contractor.

This article covers:

  • Pre-installation preparation and assessment
  • Step-by-step installation process
  • Safety requirements and code compliance
  • Testing and commissioning procedures
  • When to call professional technicians

🛠️ Pre-Installation Assessment and Preparation

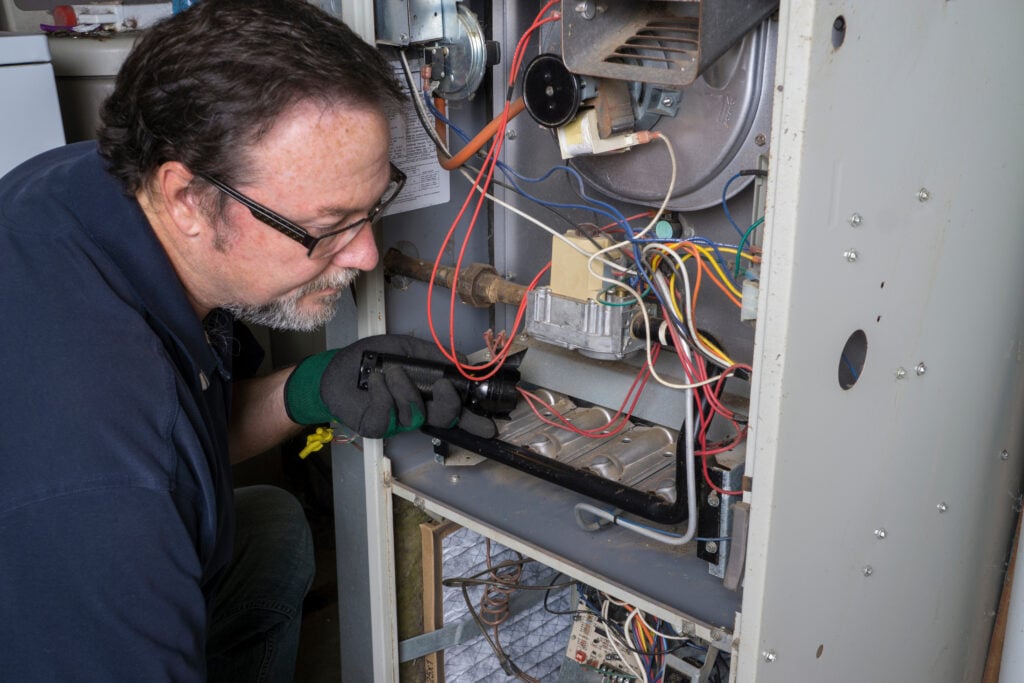

Techician looking over a gas furnace with a flashlight before cleaning it.

Before any gas furnace installation begins, a thorough assessment of your home’s heating needs and existing infrastructure is essential. This evaluation determines the right furnace size, type, and any modifications needed to your current system.

Your HVAC technician will calculate your home’s heating load based on square footage, insulation levels, window types, and local climate conditions. This calculation ensures you get a furnace that’s properly sized for your space. An oversized furnace will cycle on and off frequently, reducing efficiency and comfort. An undersized unit will struggle to maintain comfortable temperatures during cold weather.

Key Steps in the Pre-Installation Process

  • Calculate your home’s heating load based on size, insulation, and climate.
  • Determine the appropriate furnace size and type for your home.
  • Inspect existing ductwork for repairs or modifications.
  • Ensure the electrical panel can handle the furnace’s power needs.
  • Verify the gas line is properly sized and in good condition.
  • Obtain necessary permits for installation through your local building department.

👉 Selecting the Right Gas Furnace

Choosing the right gas furnace involves several key considerations that affect both performance and long-term costs.

FeatureHigh-Efficiency FurnacesStandard-Efficiency FurnacesSingle-Stage FurnacesTwo-Stage FurnacesVariable-Speed Furnaces
AFUE Rating90% or higher80-85%N/AN/AN/A
TechnologyUses condensing technology to extract additional heatBasic combustion systemOperates at full capacity onlyOperates at two capacities (low/high)Adjusts heating output and fan speed automatically
Upfront CostHigherLowerLowerModerateHigher
Energy SavingsSignificant over timeLower long-term savingsLess efficient overallModerate savingsHighest efficiency and comfort control
Climate SuitabilityBest for colder climatesSuitable for milder climatesWorks in all climates, less efficientBetter for varied temperaturesIdeal for varying climates and needs
Comfort ControlExcellent (consistent heat output)BasicBasicImprovedBest (customized to home’s needs)
RecommendationLong-term value in cold climatesBudget-friendly option for mild climatesSuitable for simple heating needsGood balance of comfort and efficiencyBest for optimal comfort and energy savings

✅ 7 Step Gas Furnace Installation Process

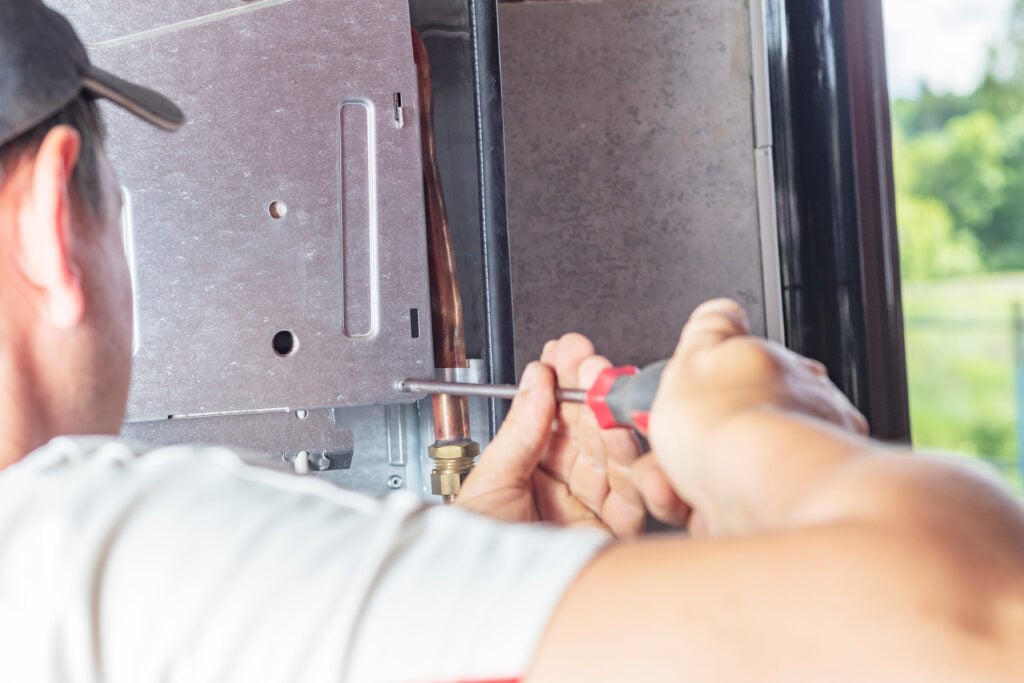

The master sets up a gas boiler, which weighs on the wall. The front dashboard is open. The removal and installation of gas nozzles for gas supply.

Proper gas furnace installation is crucial for ensuring your system operates safely and efficiently. A correct installation also extends the lifespan of your furnace and helps prevent costly repairs.

1. Remove the Old Furnace

The installation begins with safely disconnecting and removing your existing furnace. Technicians will shut off gas and electrical supplies, then disconnect all connections including gas lines, electrical wiring, and ductwork. The old furnace is carefully removed, along with any outdated components that won’t be reused.

2. Prepare the Installation Area

The installation area is cleaned and prepared for the new furnace. This may involve modifying the platform, updating electrical connections, or adjusting gas line positioning. Proper clearances around the furnace must be maintained for safety and service access.

3. Install New Gas Lines and Electrical Connections

If needed, gas lines are extended or modified to reach the new furnace location. All connections must comply with local codes and use approved materials. Electrical connections are updated to match the new furnace’s requirements, including proper grounding and disconnect switches.

4. Position and Connect the New Furnace

The new furnace is carefully positioned and leveled in the installation area. Gas connections are made using approved fittings and tested for leaks. Electrical connections are completed and verified for proper operation.

5. Connect Ductwork and Venting

Existing ductwork is connected to the new furnace, with modifications made as needed for proper fit and airflow. The venting system is installed or updated to safely remove combustion gases. High-efficiency furnaces require different venting materials and configurations than standard units.

6. Install Thermostat and Controls

The thermostat is connected to the new furnace and programmed for optimal operation. Additional controls such as humidifiers or air purifiers are integrated as needed. All safety switches and sensors are tested to ensure proper function.

7. Test System Operation

Comprehensive testing verifies that all components work correctly. This includes checking gas pressure, electrical connections, airflow, and safety systems. The furnace is cycled through complete heating cycles to ensure reliable operation.

🦺 Safety Requirements and Code Compliance

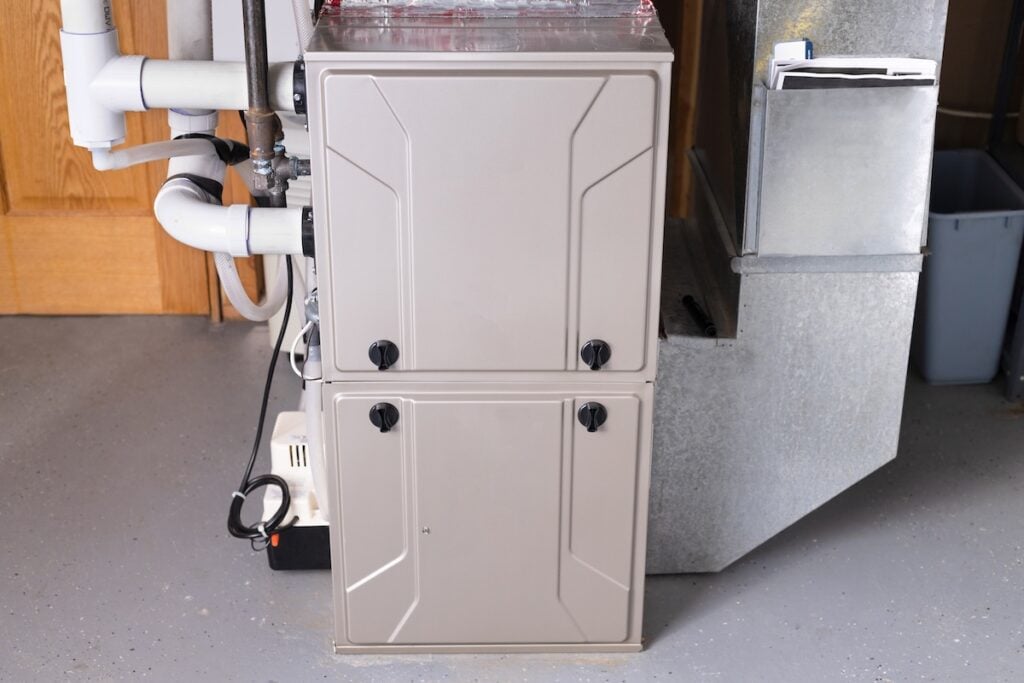

Double stage gas furnace in the basement gas furnace installation

Gas furnace installation must comply with strict safety codes and regulations to protect your family and property. These requirements cover everything from proper venting to gas line installation and electrical connections.

Proper Venting

Proper venting is critical for safely removing combustion gases from your home. The venting system must be sized correctly and installed with appropriate materials. High-efficiency furnaces produce condensate that requires proper drainage to prevent water damage.

Gas Line Connections

Gas line connections require specific materials and installation techniques to prevent leaks. All connections must be tested with pressure gauges and leak detection solutions. Emergency shut-off valves must be installed in accessible locations.

Electrical Connections

Electrical connections must meet local electrical codes and include proper grounding and overcurrent protection. Many areas require dedicated electrical circuits for gas furnaces to ensure reliable operation.

Carbon Monoxide Detectors

Carbon monoxide detectors should be installed or updated as part of any gas furnace installation. These devices provide early warning of potential safety issues and are required by code in many jurisdictions.

👉 Testing and Commissioning

Once installation is complete, comprehensive testing ensures your new gas furnace operates safely and efficiently. This process, called commissioning, verifies that all components work together properly.

Gas Pressure Testing

Confirms that fuel delivery meets manufacturer specifications. Too much pressure can damage components, while insufficient pressure reduces heating capacity and efficiency.

Airflow Testing

Measures the volume of air moving through your ductwork. Proper airflow is essential for efficient heating and equipment longevity. Restricted airflow can cause overheating and premature component failure.

Safety System Testing

Ensures all protective devices function correctly. This includes testing limit switches, pressure switches, and flame sensors. These components shut down the furnace if unsafe conditions develop.

Thermostat Verification

The technician will verify proper thermostat operation and program it for optimal comfort and efficiency. You’ll also receive instruction on operating your new furnace and scheduling regular maintenance.

🤝 Trust Panther Heating & Cooling for Your Gas Furnace Installation

When it comes to gas furnace installation, experience and expertise make all the difference. At Panther Heating & Cooling, our NATE-certified technicians bring years of experience and a commitment to quality that ensures your installation is done right the first time.

Don’t trust your home’s heating system to just anyone. Contact Panther Heating & Cooling today to schedule your gas furnace installation consultation. We’ll help you select the right system for your home and provide expert installation that delivers years of reliable comfort.
